Characteristics:

1. Adopting a 32-bit motor control dedicated chip

2. Closed-loop vector control technology

3. Low speed ultra quiet, smooth current, suitable for various scenarios

4. Voltage level 12VDC~48VDC, supporting wide voltage input

5. Pulse signal level supports TTL 3.3V \ 5V, and supports common cathode and common anode connection methods

6. Control command maximum pulse frequency 250KHz

7. It has protection functions such as overvoltage, undervoltage, overcurrent, and overheating

8. Built in smooth micro subdivision technology

9. When the motor is stationary, the current automatically decays to reduce heat generation

10.  Ultra high cost-effectiveness, cost-effective and efficient

11. Acceptable customization

Typical applications:

Widely used in various small and medium-sized automation equipment and instruments, such as electronic processing equipment, 3C non-standard automation equipment, screw locking machines, wire stripping machines, winding machines, terminal machines, laser machines, marking machines, spray painting machines, small and medium-sized carving machines, automatic grabbing equipment, specialized CNC machine tools, packaging equipment and robots.

Product Overview:

Adopting 32-bit ARM digital processing technology and built-in micro and intermediate frequency vibration suppression technology, effectively improving the smoothness of motor operation and reducing heat generation. Segmentation and current can be set through dialing, with a simple interface definition, committed to providing customers with a cost-effective all-in-one machine control solution.

Dial code setting:

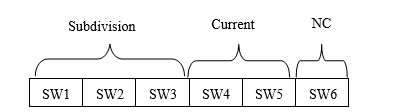

Using a 6-digit DIP switch to set the minimum current and fractional value, the detailed description is as follows:

SW4 and SW5 set the minimum current of the driver

Segmented dialing SW1, SW2, SW3: As shown in the dialing segmentation table below, customers can set the desired segmentation through dialing.

Control Port (B08B-PASK-1 (LF) (SN) 8-bit Pin)

Power Port （B06B-XASK-1(LF)(SN)  2-bit pin）
